In semiconductor testing and electronics manufacturing, test probes play an important role in establishing electrical contact and supporting reliable measurements. Tungsten carbide test probes are worth considering for applications that require a hard, wear-resistant material and consistent contact performance.
Shenzhen Haizhixiang Electronics Co., Ltd. (DingXin Precision) specializes in semiconductor consumables and precision components, including suction nozzles, Bakelite nozzles, ejector pins, dispensing heads, test probes, jigs, and fixtures. This guide explains the key features, applications, and selection considerations for tungsten carbide test probes.

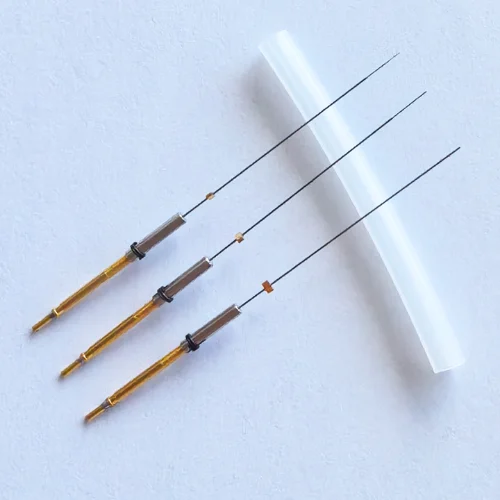

- What Are Tungsten Carbide Test Probes?
Tungsten carbide is a hard material commonly used in precision tooling and wear-resistant components. When selected for suitable probe designs, it can help resist wear caused by repeated contact during testing.
The probe’s actual performance depends on its material grade, geometry, surface finish, contact design, and operating conditions.
- Key Features of Tungsten Carbide Test Probes
High hardness and wear resistance
Tungsten carbide can provide strong resistance to mechanical wear, making it suitable for applications involving repeated contact.
Dimensional stability
With appropriate material selection and precision machining, probe dimensions and tip geometry can be maintained within specified tolerances.
Suitable for precision applications
Carefully manufactured probe tips can support accurate positioning and consistent contact when used in a compatible test system.
Custom design options
Probe diameter, length, tip shape, and mounting dimensions can be customized according to equipment specifications and application requirements.
Note: Tungsten carbide is electrically conductive, but its electrical performance depends on the specific grade, surface condition, and contact design. It is not automatically the best choice for every test application.
- Common Applications
Tungsten carbide test probes may be considered for:
Semiconductor testing: Specialized contact components used in compatible semiconductor test fixtures and test assemblies.
Electronic component testing: Applications requiring repeated contact with defined contact geometry.
Precision test fixtures: Custom probe components integrated into inspection and measurement equipment.
Automated testing systems: Applications where dimensional consistency and wear resistance are important.
The appropriate probe design depends on the electrical requirements, contact force, test target, and equipment configuration.
- How to Select and Maintain Test Probes
Before choosing a tungsten carbide test probe, consider the following factors:
Contact requirements: Confirm the electrical properties and contact interface required by the testing system.
Tip geometry: Select a suitable tip shape and size for the target surface.
Dimensions and tolerances: Verify the probe length, diameter, straightness, and mounting specifications.
Operating conditions: Consider contact force, testing frequency, and expected wear.
Inspection and maintenance: Check for tip damage, contamination, deformation, or inconsistent contact. Replace probes when they no longer meet the required specifications.
Providing drawings, samples, and equipment details can help ensure the selected probe matches the intended application.
- Custom Tungsten Carbide Test Probes from DingXin Precision
Shenzhen Haizhixiang Electronics Co., Ltd. (DingXin Precision) provides precision machining and customized semiconductor consumables. Our product range includes test probes, suction nozzles, ejector pins, dispensing heads, jigs, fixtures, and other precision components.
For custom projects, we can review drawings, samples, dimensions, and application requirements to discuss a suitable manufacturing solution.
Contact DingXin Precision to discuss your tungsten carbide test probe requirements and custom precision components.
