Product Overview
Multi-hole dispensing needles, also known as multi-point dispensing tips, are precision multi-tube assemblies designed to dispense glue at multiple positions in a single stroke. With precisely aligned capillary tubes and consistent inner bore polishing, all outlets deliver uniform glue volume simultaneously. This drastically boosts throughput for mass production, reduces cycle time and improves positional consistency. Widely compatible with automatic dispensers and syringe barrels in electronics, semiconductor packaging and optoelectronic industries.
Key Features

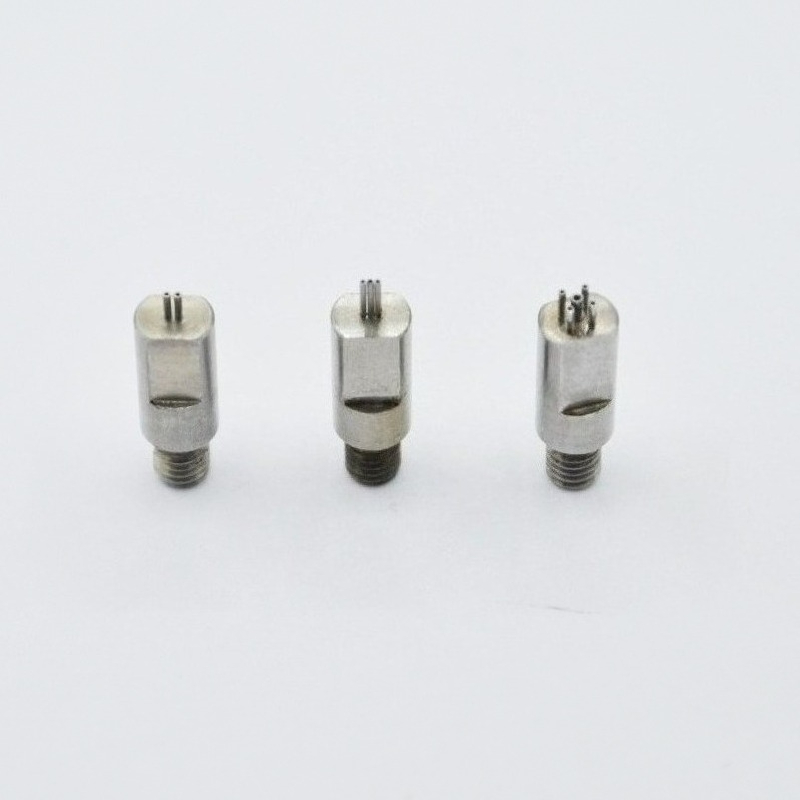

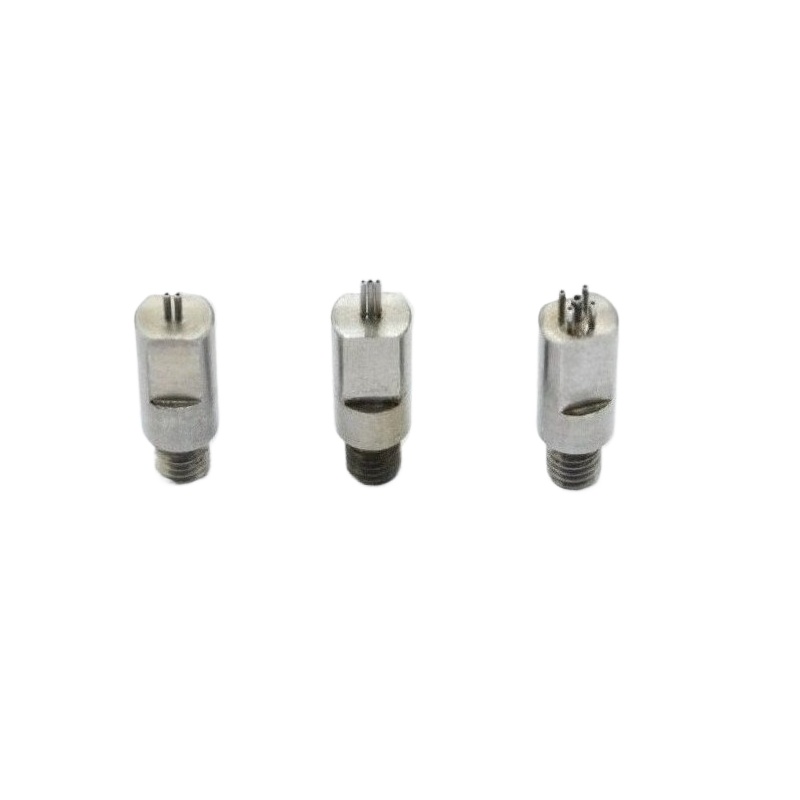

- Multi-outlet synchronous dispensing: 2 / 3 / 4 holes available, multiple glue dots in one shot, higher production efficiency
- High coaxiality & equal flow: Each capillary inner bore is precision machined, consistent dot size across all outlets
- Smooth polished inner channel: Minimize fluid resistance, reduce glue stringing, dripping and clogging
- Custom pin layout: Linear, square, circular arrangement, adjustable pitch between holes
- Material options: SUS304 / SUS316L stainless steel; WC / ceramic capillary optional for high-wear adhesive
- Universal connection: Luer lock or threaded base, compatible with Musashi and mainstream dispensing systems
Technical Parameters
表格
| Item | Specification |
|---|---|
| Material | SUS304 / SUS316L; WC / ceramic optional |

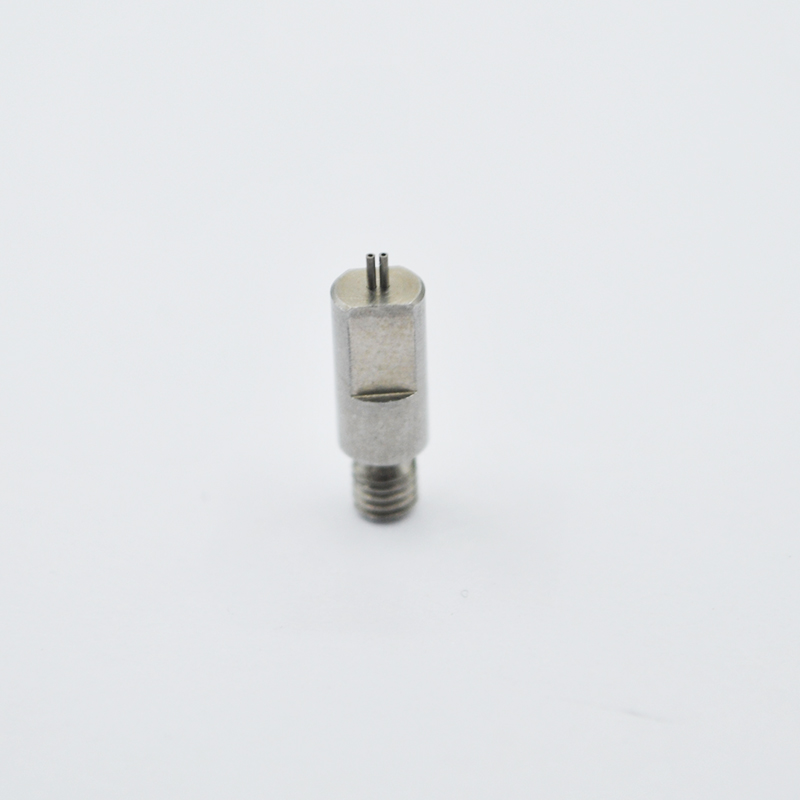

| Number of Holes | 2-hole, 3-hole, 4-hole, custom multi-hole design |
| Single tube Inner Diameter (ID) | φ0.1mm – φ1.0mm (custom micro bore) |
| Single tube Outer Diameter (OD) | φ0.3mm – φ1.6mm |
| Pitch between holes | 0.5mm – 10mm, customizable spacing |
| Total Length | 8mm – 25mm, custom length supported |
| Dimensional Tolerance | ±0.005mm |
| Inner Surface Roughness | Ra ≤ 0.2μm |
| Tip Style | Flat tip / Tapered tip |
| Applicable Viscosity | Low to medium viscosity adhesives |
Application
- Semiconductor & IC packaging: simultaneous multi-dot dispensing for silver paste, UV glue, underfill, epoxy
- Electronic assembly: PCB, camera module, crystal oscillator, connector multi-point gluing
- Optoelectronics: LED, FPD multi-position adhesive coating
- New energy: battery module multi-point seal dispensing
- General industry: conductive glue, silicone, single-component adhesive
Multi-hole vs Single-hole Dispensing Needle
表格
| Item | Multi-hole Dispensing Needle | Single-hole Dispensing Needle |
|---|---|---|
| Dispensing mode | Multiple dots in one cycle | One dot per cycle |
| Production Efficiency | Greatly improved, short cycle time | Lower, repeated movement required |
| Dot Consistency | High, pre-fixed pitch | Depends on machine positioning accuracy |
| Customization | Hole count, layout & pitch customizable | Simple single tube only |
| Limitation | More prone to clogging with high-viscosity / filled glue | Less clogging risk |
| Best For | Mass production with fixed multi-point pattern | Flexible random single-point dispensing |
