Product Overview

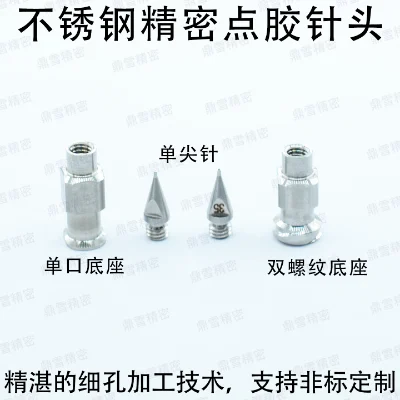

Split type dispensing needles are high-precision separable dispensing components, composed of detachable needle base and needle tube. The split design enables quick replacement of the tip without changing the base, greatly cutting maintenance cost. Inner bore mirror polishing reduces fluid resistance, prevents glue stringing, climbing glue and clogging. Widely used for micro-volume dispensing in semiconductor packaging, electronics assembly, LED and FPD industry, compatible with Musashi and most automatic dispensing machines.
Key Features
- Detachable Split Structure: Separate base and needle tip; only replace worn needle tube, save cost
- Ultra-smooth Inner Bore: Precision mirror polishing, stable flow, less glue stringing & dripping
- High Dimensional Accuracy: Strict tolerance control, consistent micro glue dots
- Multiple Thread Options: Single thread / double thread base available
- Wide Compatibility: Fits most automatic dispensers, syringe barrels and dispensing valves
- Customizable Tip: Flat tip, tapered tip, angled tip, multi-tube design supported

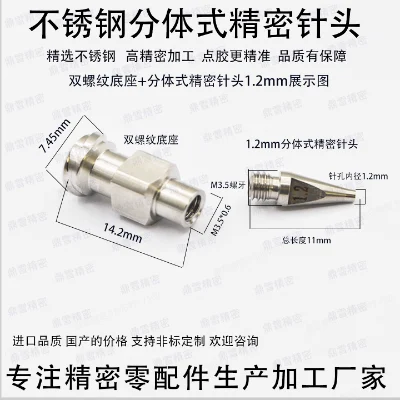

Technical Parameters
表格
| Item | Specification |
|---|---|
| Material | SUS304 / SUS316L Stainless Steel (WC / ceramic tip optional) |
| Inner Diameter(ID) | φ0.1mm – φ2.0mm (custom micro bore) |
| Outer Diameter(OD) | φ0.4mm – φ4.0mm |
| Total Length | 8mm – 25mm, custom length available |

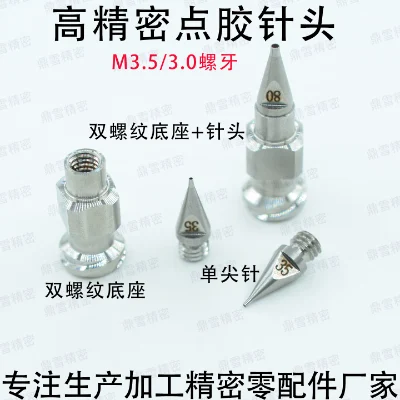

| Thread Type | Single thread / Double thread / M4 thread |
| Dimensional Tolerance | ±0.005mm |
| Surface Roughness (Inner Hole) | Ra ≤ 0.2μm |
| Tip Style | Flat tip / Tapered tip / Angled tip |
| Applicable Viscosity | Low ~ high viscosity adhesives |
Application
- Semiconductor & IC packaging: epoxy, silver paste, underfill, UV glue dispensing
- Electronics assembly: PCB, camera module, crystal oscillator, BGA sealing
- Optoelectronics: LED, LCD panel frame glue coating
- New energy: battery module adhesive dispensing
- General industrial: silicone, conductive glue, solder paste, two-component AB glue
Split Type vs One-piece Dispensing Needle
表格
| Item | Split Type Dispensing Needle | One-piece Dispensing Needle |
|---|---|---|
| Structure | Detachable base + replaceable needle tip | Integrated single piece |
| Maintenance | Replace tip only, lower running cost | Replace whole needle when worn |
| Cleaning | Easy to disassemble & deep clean | Harder for thorough cleaning |
| Precision | High, consistent micro dispensing | Good for standard dispensing |
| Best For | High frequency, micro-volume, precision production | General low-precision dispensing |
