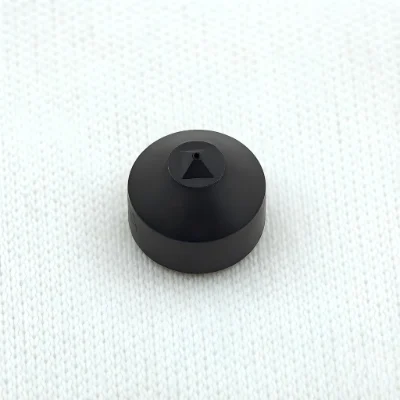

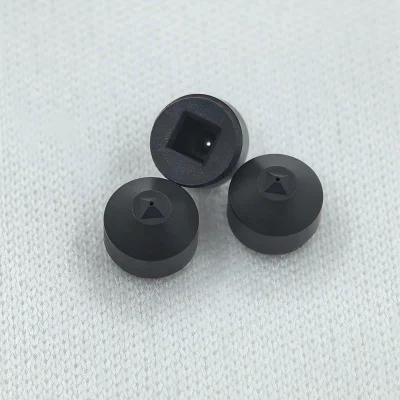

1. Product Overview
The Conical Rubber Nozzle is a professional tapered fluid control accessory designed for precision dispensing, targeted air blowing, gap cleaning and soft inflation operations. Different from ultra-thin pointed nozzles, it adopts a standard smooth conical gradient structure with uniform shrinkage from the base to the tip, delivering stable, concentrated and non-scattered fluid output. Integrally molded from high-elastic industrial rubber, this conical nozzle features excellent overall toughness and consistent wall thickness, effectively preventing dripping, leakage and fluid turbulence during operation. The soft rubber body will never scratch, dent or damage painted surfaces, plastic parts, electronic components and precision workpieces. It boasts strong versatility and can be perfectly matched with standard dispensing syringes, air blow guns, manual dispensers and micro fluid control equipment for various fine industrial operations.
2. Core Features & Advantages
- Standard Conical Tapered Structure: Adopts scientific uniform conical shrinkage design, with smooth inner and outer walls. It provides stable and concentrated fluid flow, avoids unbalanced pressure and splashing caused by irregular tip shapes, and achieves precise and controllable dispensing, blowing and cleaning effects, ideal for standard fine industrial processes.
- Premium Rubber Material Performance: Adopts high-quality elastic rubber with excellent flexibility, wear resistance and anti-aging properties. It maintains stable softness and toughness under long-term repeated use, not easy to deform, crack or harden. Good sealing performance ensures zero leakage during working pressure.
- Surface Protection & Safety: Soft rubber contact structure will not scratch metal surfaces, paint layers, plastic parts and electronic components. It is OSHA-compliant for safe operation, avoiding hard contact damage caused by metal nozzles.
- Wide Compatibility: Standard connecting size fits most mainstream dispensing syringes, air blow guns, micro inflators and manual fluid dispensing tools, realizing quick assembly and replacement without auxiliary tools.
- Strong Environmental Adaptability: Stable working performance in conventional temperature range, resistant to common glue, oil, water and weak corrosive fluids, suitable for long-term industrial continuous use.
- Customizable Support: Supports customized tip diameter, overall length, rubber hardness and color to meet personalized precision dispensing and special equipment matching needs.
3. Application Scenarios
This pointed rubber nozzle is widely used in precision manufacturing and maintenance industries, including electronic assembly glue dispensing, circuit board cleaning, precision mold dust removal, small parts inflation, packaging glue injection, medical micro-dispensing, automobile surface cleaning and daily hardware maintenance. It is especially suitable for fine operations that require high precision and strict surface protection.
4. Technical Parameter Specification Table
| Item | Technical Specification |
|---|---|
| Product Name | Conical Rubber Nozzle / Tapered Conical Dispensing Rubber Tip |
| Main Material | Industrial Elastic Rubber (Customizable Silicone Rubber) |
| Rubber Hardness | Shore 60–70 A (Standard; Custom Hardness Available) |
| Nozzle Tip Diameter | 3mm (Standard; Custom 1.0mm–5.0mm Optional) |
| Overall Dimension | 35mm × 12mm (Standard L×W) |
| Connecting Thread | 1/8″ NPT Male Standard Thread (Universal Interface) |
| Working Temperature Range | -20℃ to +120℃ (Stable Long-term Operation) |
| Color | Black (Standard; Custom Color Supported) |
| Performance Characteristics | Leak-proof, Wear-resistant, Anti-aging, Surface Protective, No Deformation |
| Compatible Equipment | Air Blow Gun, Dispensing Syringe, Micro Inflator, Manual Glue Dispenser |
| Application Media | Air, Glue, Oil, Water, Common Low-viscosity Liquids |
| Compliance Standard | OSHA Safety Standard, Industrial Grade Quality |
| Custom Service | Size, Hardness, Color, Special Material Customization |
5. Product Features Summary (Short Version for Listing)
Our Conical Rubber Nozzles feature a standard smooth conical tapered structure for stable, concentrated and precise fluid dispensing and air blowing. Made of high-elastic industrial-grade rubber, these conical nozzles deliver outstanding wear resistance, anti-aging performance and reliable leak-proof sealing. The soft material protects delicate workpieces from scratches and damage during operation. Equipped with a universal 1/8″ NPT standard interface, they are fully compatible with most air tools and dispensing equipment. Widely applicable for precision cleaning, micro glue dispensing and soft inflation in electronics, automotive, packaging and precision manufacturing fields, with customizable specifications to fit diverse industrial requirements.
