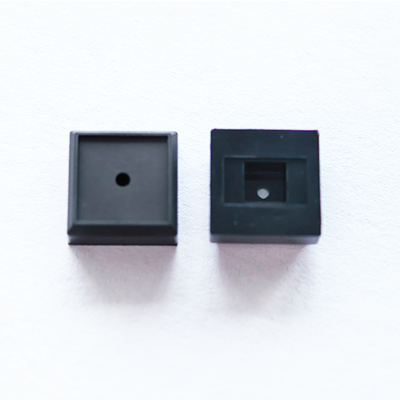

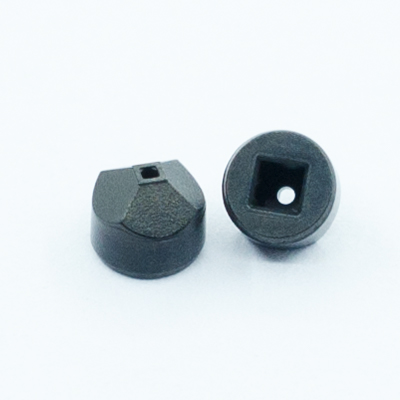

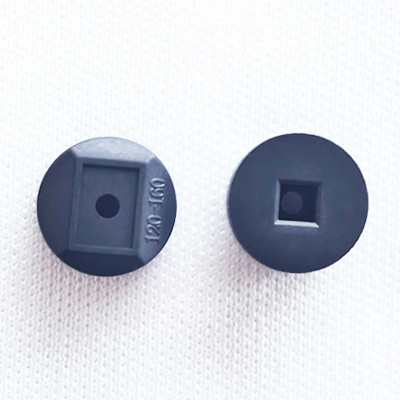

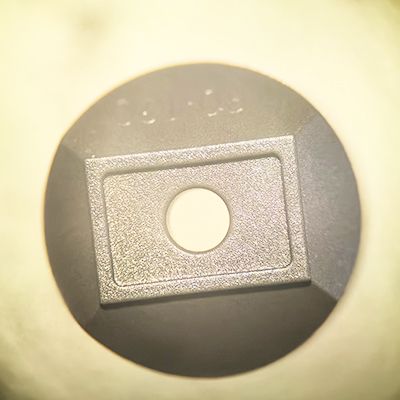

Square ESD rubber suction nozzles are custom CNC-machined vacuum pick-up consumables designed for rectangular dies, thin ICs and flat micro-components in semiconductor packaging, die bonding and SMT assembly.
Made of anti-static silicone or conductive NBR rubber, they feature flexible, soft contact to eliminate pressure marks, indentations and scratches on delicate, ultra-thin workpieces. The square contour perfectly matches rectangular chips to provide uniform vacuum sealing and stable suction performance.
We support customization of outer dimension, inner cavity, hole layout, rubber hardness, taper angle and shank interface. Every variant is assigned a unique SKU for convenient stock management and order tracking. All nozzles are 100% air-tightness inspected and suitable for cleanroom production.
Key Features
- ESD dissipative material to protect sensitive semiconductor devices from electrostatic damage
- Soft elastic body, no indentation on thin, fragile chips
- Square profile for optimal fitting with rectangular micro-components
- Stable vacuum sealing, low pick & miss rate
- Cleanroom compatible, low particle generation
- Fully customizable dimensions, hardness and mounting shank
- Individual SKU coding for inventory control
Applications
Die bonders, chip sorters, SMT mounters, Mini/Micro LED packaging, sensor assembly, thin IC handling

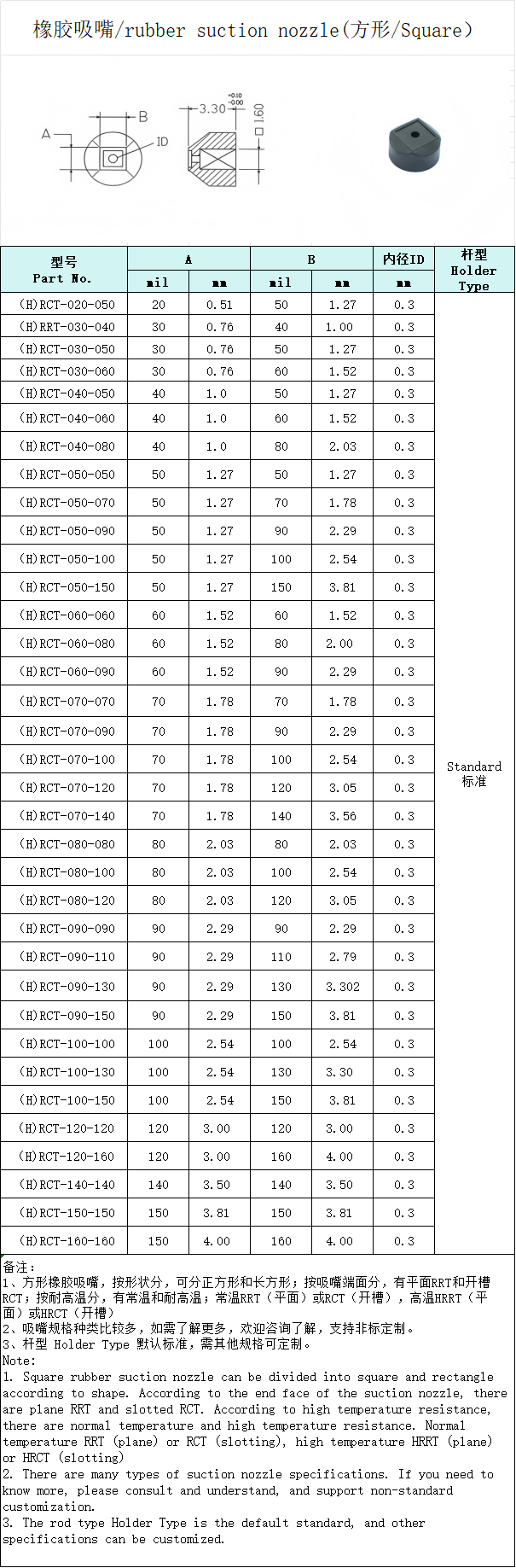

Technical Specification Table
表格
| Item | Specification |
|---|---|
| Product Name | Square ESD Rubber Suction Nozzle |
| Material | Anti-static Silicone / Conductive NBR (optional) |
| Hardness | Shore A 40 ~ 90 customizable |
| Surface Resistance | 10⁶ ~ 10⁹ Ω (ESD safe) |

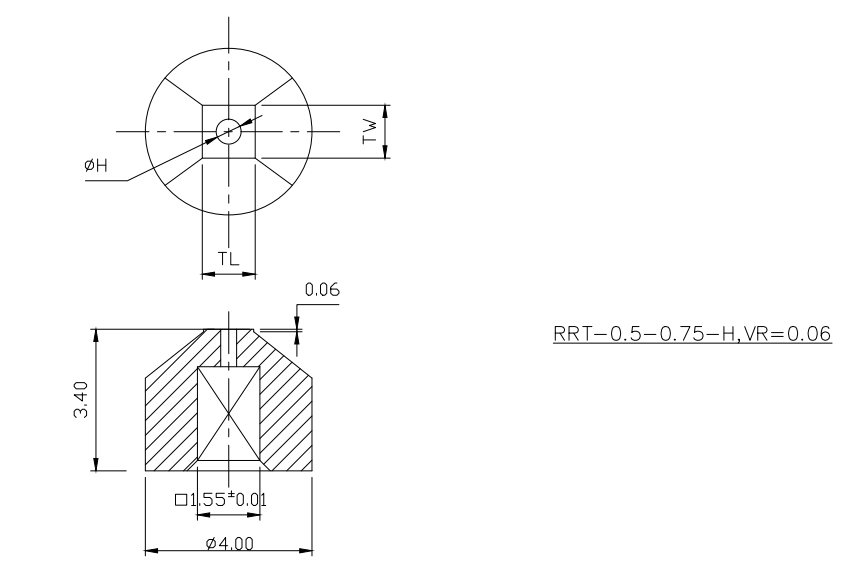

| Outer Size | Custom square dimension, min 0.2mm |
| Inner Cavity / Vacuum Hole | Custom layout, micro hole available |
| Total Height | Customized |
| Shank Interface | Custom for die bonder / SMT holder |
| Temperature Resistance | -20℃ ~ 130℃ |
| Inspection | 100% air tightness test |
| Compatibility | Die bonder, chip sorter, SMT equipment |
| SKU | Unique SKU for each specification |
